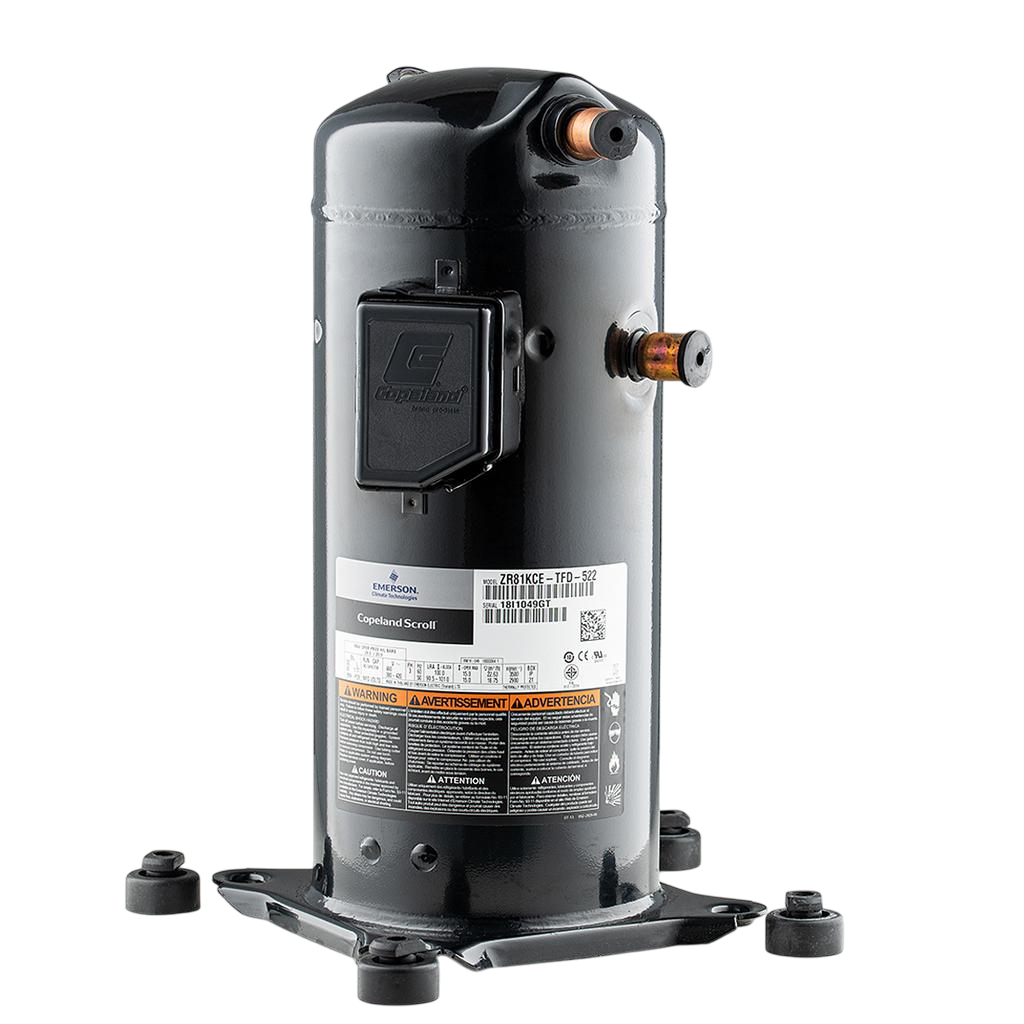

Scroll Compressor ZR81KCE-TFD-522 Copeland

Description

Designed for high-efficiency air conditioning systems the Scroll Compressor ZR81KCE-TFD-522 Copeland  is a 7.5 HP hermetic scroll compressor. It delivers outstanding cooling performance, superior energy efficiency, and long-lasting reliability. Engineered for use with R-407C refrigerant and operating on a 50Hz, 3-phase 380/420V power supply, this model is ideal for commercial and industrial air conditioning applications.

⚙️ Technical Specifications

• Cooling Capacity: Up to 78,300 BTU/hr (R-407C @ 45°F evap / 100°F cond)

• Power Input: 3.99 – 5.90 kW depending on conditions

• EER Rating: 8.60 to 10.95 Btu/Wh

• Horsepower: 7.5 HP

• Voltage: 380/420V | 3-Phase | 50Hz

• Current Draw:

  • MCC: 17.0 A

  • LRA: 101.0 A (High)

  • RLA for Contactor: 12.1 A

  • RLA for Breaker/Wire Sizing: 10.9 A

• Oil Charge: 56 oz (POE)

• Sound Power: 72 dBA Avg | 77 dBA Max

• Weight: 86 lbs

• Suction Line Size: 7/8″ Stub

• Discharge Line Size: 3/4″ Stub

• Mounting Footprint: 6.58″ x 7.50″, Height: 18.20″
