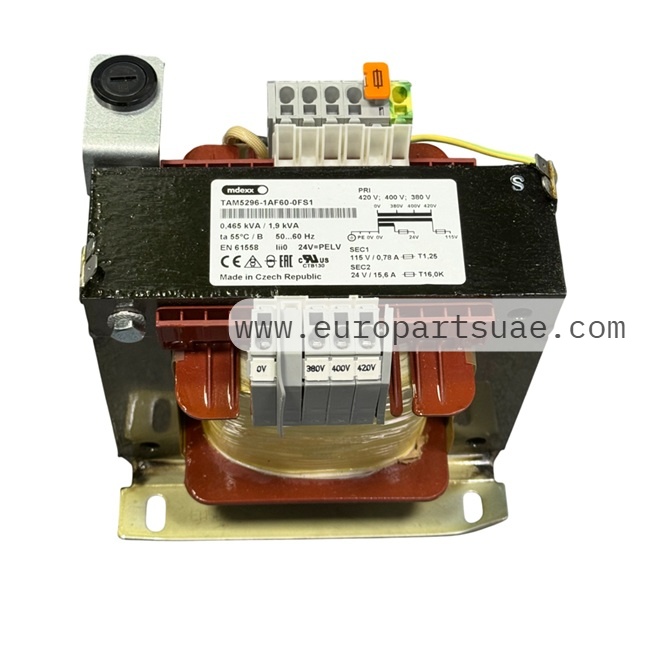

Transformer TAM5296‑1AF60‑0FS1 Mdexx

Description

This Transformer TAM5296‑1AF60‑0FS1 Mdexx manufactured single‑phase isolation/control transformer is built for precision voltage management in industrial and HVAC control circuits. With primary voltage taps at 380 V, 400 V, and 420 V and dual secondary outputs at 115 V (0.78 A) and 24 V (15.6 A), it supports a wide variety of control systems needing stable step‑down power,

Featuring genuine OEM build quality, this transformer ensures secure isolation, low electromagnetic interference, and compliance with EN 61558‑2‑1/2/4 and UL/CSA 5085, making it ideal for sensitive control applications.

Key Features

• Power capacity: 0.465 kVA nominal (up to 0.9 kVA S6 duty)

• Primary inputs: 380/400/420 V ±5%

• Secondary outputs: 115 V @ 0.78 A and 24 V @ 15.6 A

• Frequency: 50–60 Hz

• Vector group / shielding: Ii0 / 0, ensuring optimal isolation

• Efficiency: Core loss ~22 W, winding loss ~20 W, total ~42 W

• Construction: Compact, screw‑mounted with spring clamp terminals

• Temperature rating: –25 °C to +55 °C, insulation class B

• Protection rating: IP00 (open design)

Why Choose This Transformer

• Reliable voltage isolation for control panels, signal circuits, and industrial automation

• Dual secondary outputs suit systems requiring different control voltages

• Low losses deliver energy efficiency and minimal heat generation

• Safety-compliant with international standards for performance and listing

• OE‑quality build from Mdexx (SITAS series), trusted in HVAC and industrial OEM systems
