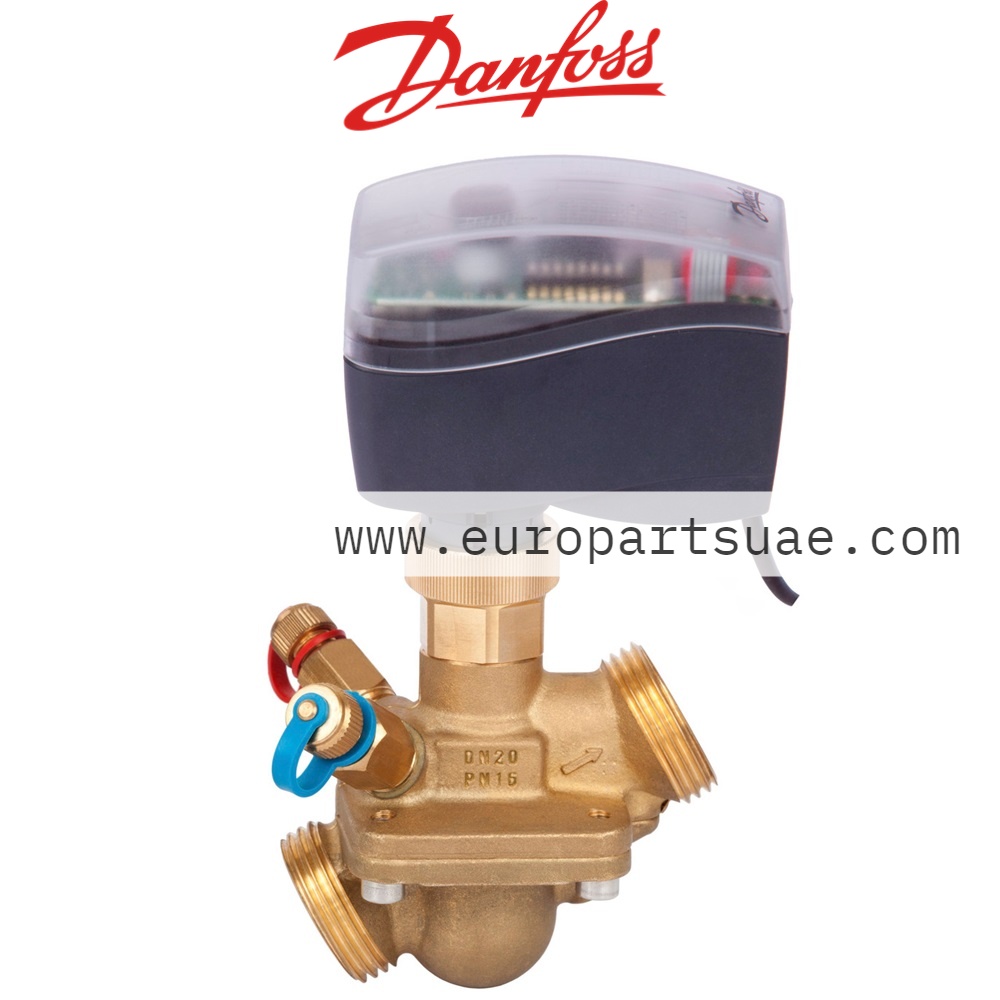

Modulating Actuator Danfoss AME110NL 082H8057 24V

Description

Modulating Actuator Danfoss AME110NL 082H8057 24V is a high-performance solution for modulating control in heating, cooling, and ventilation systems. Designed for compatibility with automatically balanced combination valves (AB-QM, DN 10-32), it offers seamless integration with fan coil units, induction units, small reheaters and zone control applications.

Key Features:

• Modulating Control: Supports precise adjustments to maintain optimal environmental conditions.
• Self-Positioning Process: Automatically adapts for consistent and reliable performance.
• Force Switch-Off: Prevents overloading by halting operation at the stem-down position.
• Maintenance-Free Operation: Long-lasting performance without requiring regular servicing.
• Quiet Performance: Operates with minimal noise, making it ideal for sensitive environments.
• Tool-Free Installation: Simplified mounting with a hand-tightened ring.
• Environmental Durability: Halogen-free cables and a robust enclosure rated at IP42 for protection.

Technical Specifications:

• Power Supply: 24 V AC (+20% to -15%), 50/60 Hz
• Control Input: 0-10 V or 0-20 mA with high precision
• Force: 130 N
• Stroke: 5 mm
• Speed: 24 s/mm
• Operating Temperature: 0°C to 55°C (medium temperature up to 120°C)
• Storage/Transport Temperature: -40°C to 70°C
• Humidity: Maximum 80%
• Weight: 0.3 kg
• Compliance: Meets EN 60730 and EN 61000 standards for safety and EMC.

Ordering Information:

• Cable Length: 1.5 m (Code: 082H8057), additional lengths (5 m, 10 m) available on request.
• Mounting Orientation: Horizontal or vertical (stem-up).

This actuator is ideal for energy-efficient building solutions, providing reliable, adaptable, and quiet performance.
